Rp 3,850,000
Stok 3
Detail
Deskripsi

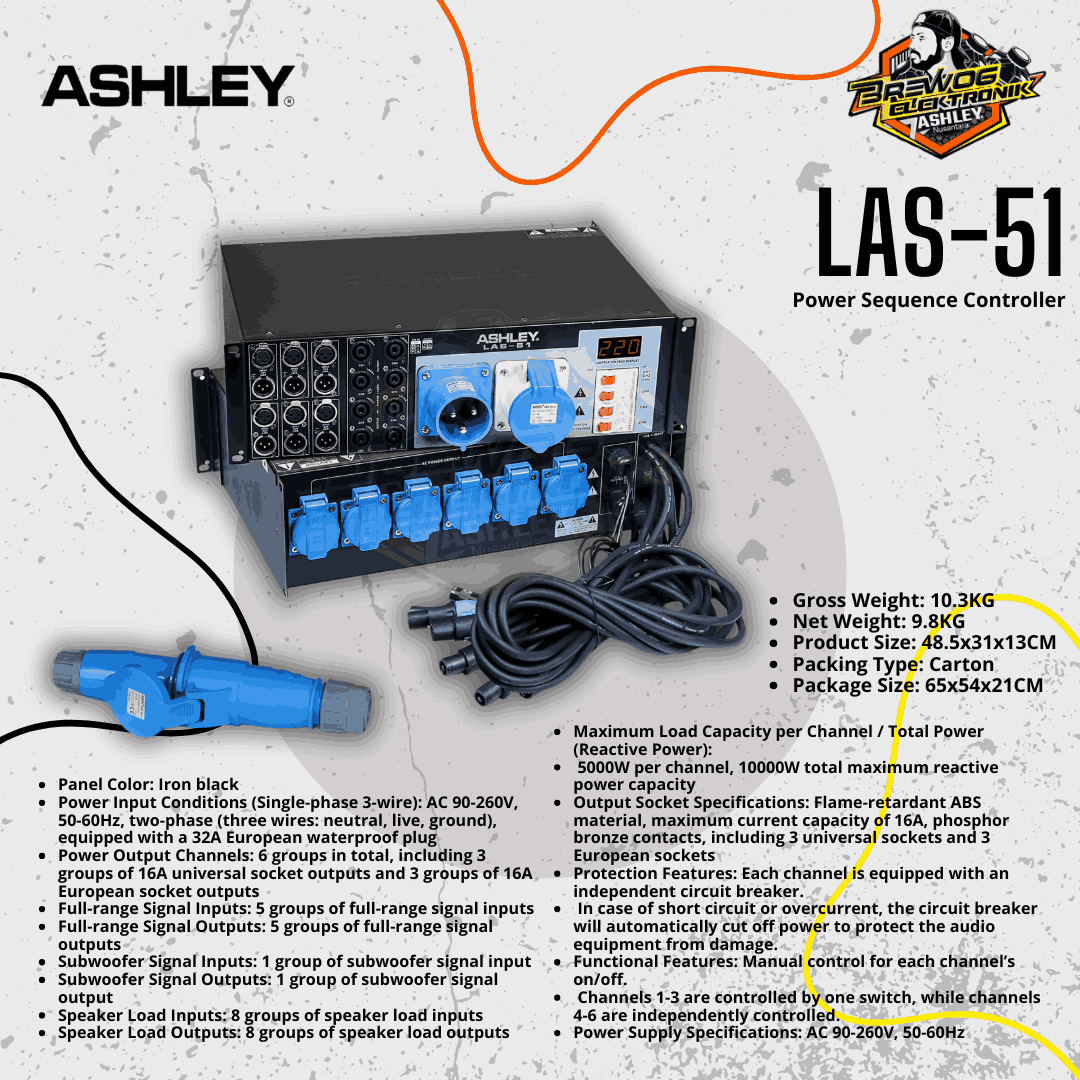

• Panel Color: Iron black
• Power Input Conditions (Single-phase 3-wire): AC 90-260V, 50-60Hz, two-phase (three wires: neutral, live, ground), equipped with a 32A European waterproof plug
• Power Output Channels: 6 groups in total, including 3 groups of 16A universal socket outputs and 3 groups of 16A European socket outputs
• Full-range Signal Inputs: 5 groups of full-range signal inputs
• Full-range Signal Outputs: 5 groups of full-range signal outputs
• Subwoofer Signal Inputs: 1 group of subwoofer signal input
• Subwoofer Signal Outputs: 1 group of subwoofer signal output
• Speaker Load Inputs: 8 groups of speaker load inputs
• Speaker Load Outputs: 8 groups of speaker load outputsMaximum Load Capacity per Channel / Total Power (Reactive Power):
• 5000W per channel, 10000W total maximum reactive power capacity
• Output Socket Specifications: Flame-retardant ABS material, maximum current capacity of 16A, phosphor bronze contacts, including 3 universal sockets and 3 European sockets
• Protection Features: Each channel is equipped with an independent circuit breaker.
• In case of short circuit or overcurrent, the circuit breaker will automatically cut off power to protect the audio equipment from damage.
• Functional Features: Manual control for each channel’s on/off.
• Channels 1-3 are controlled by one switch, while channels 4-6 are independently controlled.
• Power Supply Specifications: AC 90-260V, 50-60Hz
• Gross Weight: 10.3KG
• Net Weight: 9.8KG
• Product Size: 48.5x31x13CM
• Packing Type: Carton
• Package Size: 65x54x21CM
